Nine jobs, and what you are looking at

All of these were taken on site by the person who did the work. No showroom shots, no stock — which is why some of them are of a wall with the plaster off.

A finished bathroom with a black-framed walk-in shower screen, tiled walls and a black and white chequerboard floor.
Walk-in showerBath out, a new 1700x800 tray in and the base built. The old bath panel was upcycled to match around it, and two new screens fitted.
A new white Worcester boiler on a bare wall with five copper pipes dropping neatly beneath it.
Boiler installationA Worcester boiler on a stripped wall, flue through the side, copper pipework beneath.

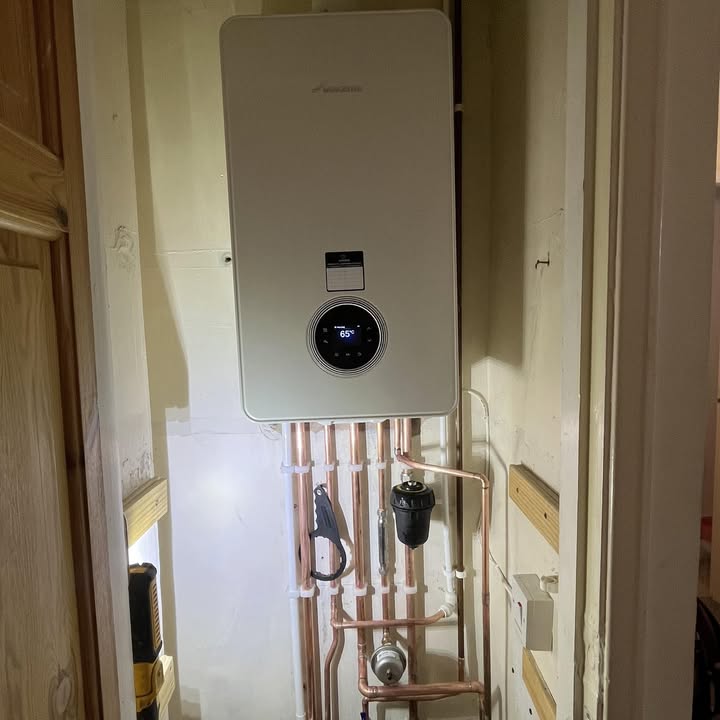

A boiler on a wall with a rank of copper pipes beneath it and the display reading 65 degrees.
New Worcester 4000Fitted into the old cylinder cupboard, with the pipework altered to suit.
Two magnetic filter cartridges pulled out, both coated in thick black iron sludge.
Magnetic filterFlush points fitted to the boiler and the system flushed through. The primary flow was blocked solid.
A new condensate pipe in 42mm, lagged, running down the outside wall to the gully.
New condensate pipeUpsized to 42mm and lagged, run down the outside wall to the gully.
A copper pipe run down the outside of a pebbledash wall with two soldered bends, clipped straight.
External copper runCopper taken down an external wall with two bends, clipped to the render.
Heating pipework running through a loft between the joists, clipped and supported, with insulation either side.
Pipework through a loftHeating pipework run through a loft between the joists.

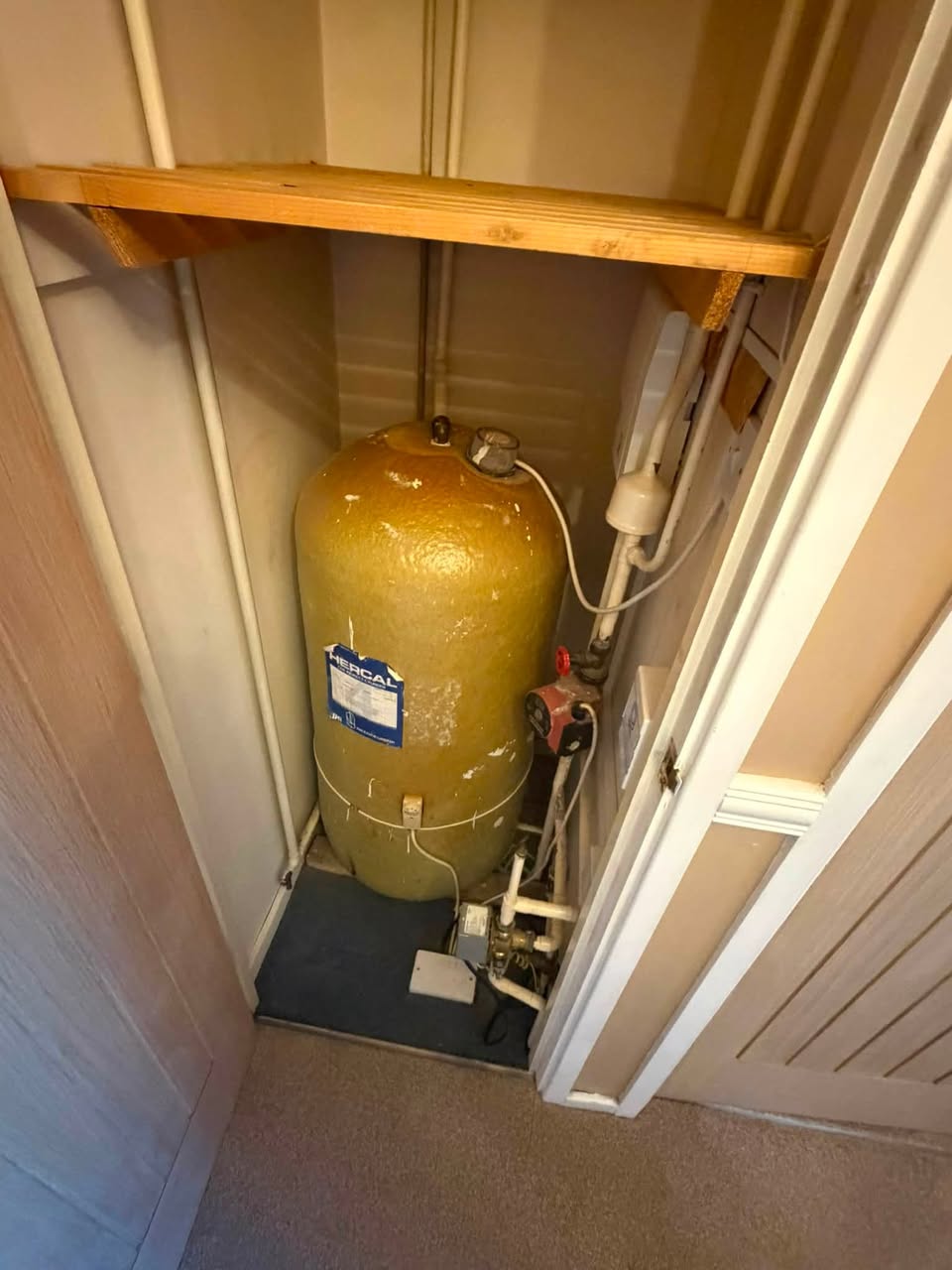

An old foam-lagged hot water cylinder in an airing cupboard with a pump and valves beside it.
Before the combi convertThe old heat-only cylinder, pump and valves. Removed, and the cupboard became the new boiler housing.

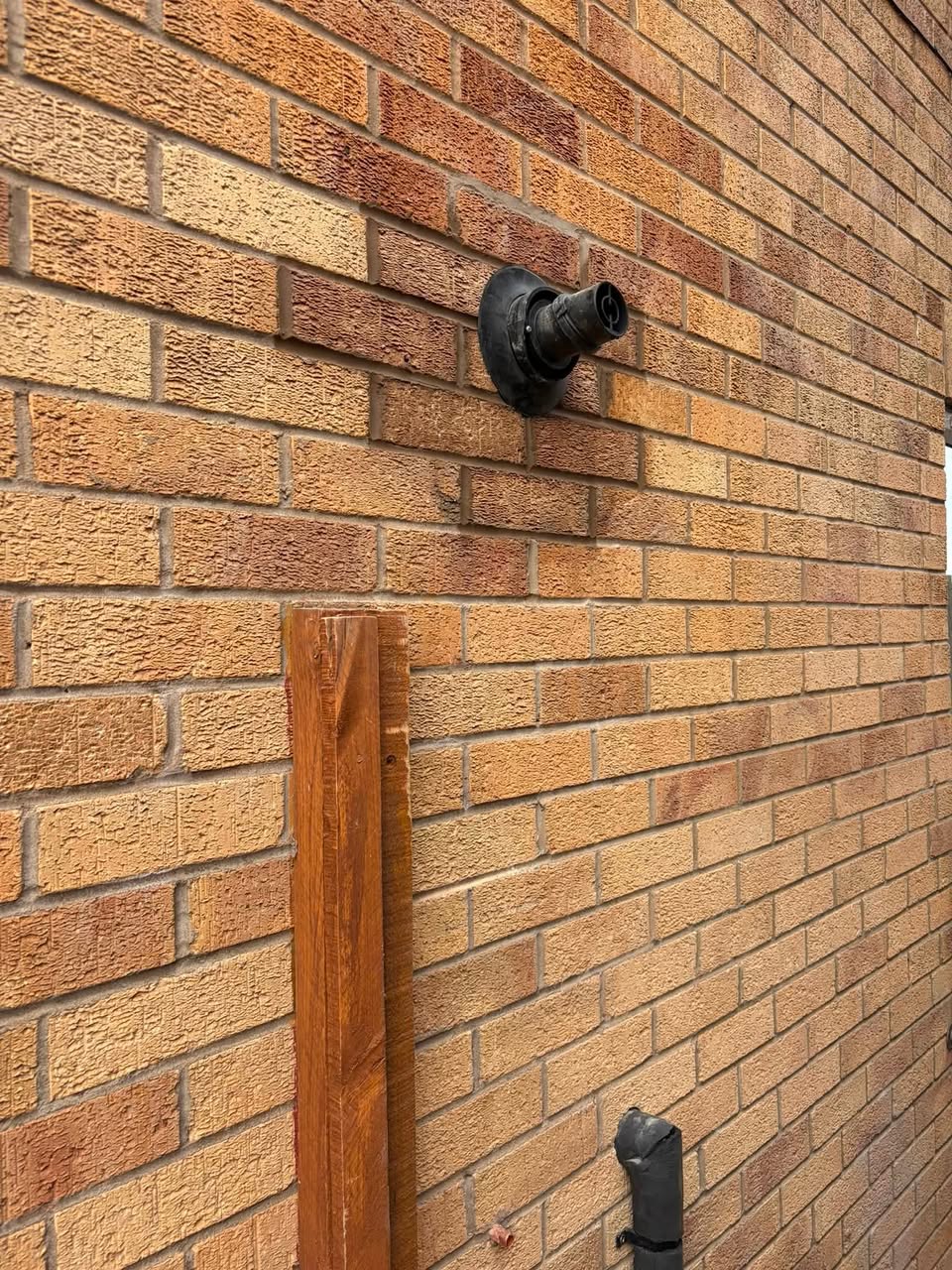

A boiler flue terminal coming through a brick wall, sealed and finished neatly against the brickwork.
Flue terminalThe flue through the outside wall on the combi conversion. The old flue hole was bricked up.

Something similar to do?

Send a photograph of it if that is easier than describing it. Most jobs can be priced from a picture and a couple of questions.
